Manufactured by Sadot for greenhouse & net-house applications — fully pre-fabricated, tested and supplied with model-specific e-documentation.
The Shibolet line of platforms is manufactured by Sadot Irrigation Systems for greenhouse & net-house applications. Every platform is built on a stainless steel chassis, fully pre-fabricated and ready to use — requiring only a little on-site work (connecting to the water inlet & outlet, mains and fertilizer tanks).
All platforms are tested at our facility for functioning, under-pressure operation, liquid injection and failure-detection mechanisms. Each is supplied with an E-documentation package containing a Help file with detailed specifications for installation, setup, calibration, maintenance and troubleshooting — unique for each model.
All models are manufactured in four diameters: 1", 1½", 2" and 3". Bigger diameters are available on request.
Direct injection with electrical, Venturi or hydraulic injectors. For simple applications up to 16 irrigation valves.
Basic modelsConstant control over the solution — for soil-less applications where EC & pH must be verified throughout.
EC & pH modelsDynamic mixer platforms, and platforms built to client specification (manifolds, lime injection and more).
Mixers & customFor simple applications (up to 16 irrigation valves). Fully assembled systems including:
For simple applications (up to 15 valves) requiring AC power for solenoids, equipped with a backup battery. Four models: MT-AC-7/15-TMB, MT-AC-7/15-AMD, MT-AC-7/15-VT(x) (Venturi) and MT-AC-7/15-EL(x,AA) (electric injectors) — 8 or 16 valves.
Powered by solar panel and a 6 Ah battery: MT-DC-8/16-TMB and MT-DC-8/16-AMD — 8 or 16 valves; the difference being the hydraulic fertilizer injector (T.M.B or Amiad).
For soil-less applications where constant control over the solution is required — verifying the concentration ratios of fertilizers, micro-elements & acid.
In addition to the standard basic-platform components, these platforms add:

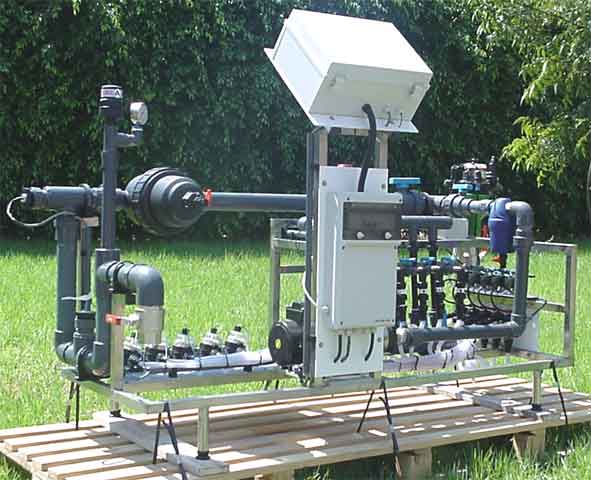

Shibolet platform type SP20-BV5-20-A
A complete platform consisting of: stainless steel chassis; manual main valve; pressure-regulated Bermad 900 hydrometer (main valve + water meter with electric pulse); PVC injection manifold; 120-mesh disc filter; pressurestat; air-release valve and glycerin pressure gauge; 5 Venturi injectors (4 fertilizers + 1 acid) with booster pump; Talgil Topaz controller (AC) with power supply and battery; Talgil EC & pH interface; 2-segment static mixer; in-line EC & pH electrodes; electrical board with junction box; 5 fertilizer meters; 5 chemical-resistant Amiad NC hydraulic valves; and 6 on-platform Baccara solenoids with LED indication.
Mixing blends fertilizers and acid with water to create a homogeneous solution — a dynamic mixer redirects part of the flow to a mixing tank, generating turbulence. Essential to guarantee the solution sampled is truly representative.
An in-line device that generates opposing currents and internal collisions. Often supplied as a 2-segment unit on EC & pH platforms.
Platforms designed to client specification — multi-fertilizer suction & injection manifolds, lime injection, handling of impenetrable liquid fertilizers, spray outlets and more.
Tell us your diameter, number of valves and injectors — we’ll configure the right model.
